The Ultimate Guide to Smart Lock Installation: Elevate Your Home Security in 2026

Elevate Your Home Security has never been easier with the introduction of smart lock technology. Smart locks offer a convenient way to protect your home, while also providing…

“Elevating home security has reached new heights with the evolution of smart lock technology. Beyond simple convenience, modern smart door locks serve as the first line of defense, offering both robust protection and sophisticated access control. However, the key to maximizing these benefits lies in a flawless installation. This ultimate guide provides a comprehensive, professional walkthrough of the smart lock installation process. From selecting the ideal hardware for your specific door type to the final software synchronization, we provide the technical insights needed to fortify your property with confidence and ease.”

1. Why Smart Lock Installation is a Must for Modern Homes

Before diving into the “how,” let’s look at the “why.” A smart lock isn’t just a gadget; it’s a security powerhouse.

• Keyless Convenience: No more lost keys or lockouts.
• Remote Monitoring: Check if your door is locked from anywhere via smartphone apps like TTLock or Tuya.
• Custom Access: Create temporary codes for Airbnb guests, delivery drivers, or maintenance crews.
• Enhanced Security: Most modern smart locks feature anti-peep passwords and auto-locking mechanisms.

2. Pre-Installation Checklist: Is Your Door Ready?

Not every smart lock fits every door. Before purchasing, verify the following:

• Door Thickness: Standard doors are usually 35mm to 55mm thick. Ensure your lock kit matches your door profile.
• Backset Measurement: Measure the distance from the edge of the door to the center of the pre-drilled hole (typically 60mm or 70mm).
• Bore Hole Diameter: Ensure the hole in your door is compatible with the new lock’s spindle and wiring.
• Handing: Is your door left-handed or right-handed? Many modern locks, like those from Ezliving, are reversible, but it’s always good to check.

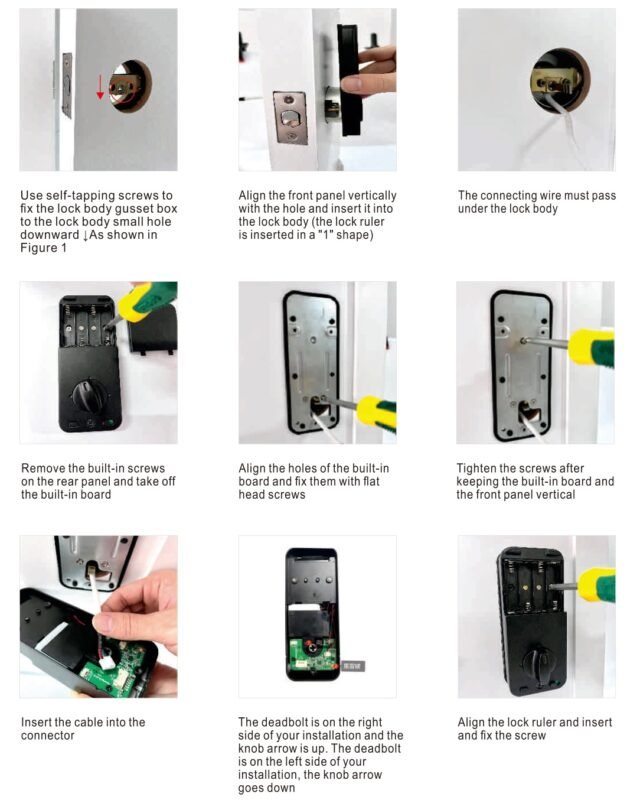

3. Step-by-Step Smart Lock Installation Guide

While specific steps vary by model, most DIY smart lock installations follow this flow:

Step 1: Remove the Old Deadbolt
Unscrew the interior mounting plate and pull the old lock hardware out. Clean the door surface to ensure a snug fit for the new gaskets.

Step 2: Install the New Latch and Strike Plate
Insert the new latch into the door edge. Ensure the “Up” sign is facing correctly. Screw it into place and replace the old strike plate on the door frame to ensure a perfect alignment.

Step 3: Mount the Exterior Keypad
Feed the data cable through the bore hole (usually under the latch). Align the exterior unit so it sits flush against the door.

Step 4: Secure the Interior Mounting Plate
From the inside, thread the cable through the mounting plate and screw it into the exterior unit. Pro Tip: Hand-tighten the screws first to ensure everything is level before final tightening.

Step 5: Connect the Cable and Interior Assembly
Plug the data cable into the interior electronic unit. Neatly tuck the excess wire into the door cavity to avoid pinching. Mount the interior unit onto the plate.

Step 6: Power Up and Sync
Insert the batteries (usually 4 AA alkaline batteries). Follow the voice prompts or the manual to pair the lock with your smartphone app via Bluetooth or Wi-Fi.

4. Troubleshooting Common Installation Issues

• The Latch is Jamming: This is usually due to a misaligned strike plate. Adjust the plate on the door frame by a few millimeters.
• App Won’t Connect: Ensure your Bluetooth is on and you are within 2 meters of the lock during initial pairing.
• Motor is Labored: Check if the screws are too tight, causing the door to warp slightly, or if the tailpiece isn’t centered.

5. DIY vs. Professional Installation: Which is Right for You?

Most smart locks are designed for DIY enthusiasts and can be installed in under 30 minutes with just a screwdriver. However, you might need a professional locksmith if:

• You need to drill new holes in a metal or reinforced door.
• You are installing a complex multi-point locking system.
• You want to integrate the lock into a hardwired professional security system.

Conclusion

Investing in smart lock installation is a proactive step toward a safer, smarter home. By following this guide, you can enjoy the peace of mind that comes with high-tech security and the convenience of keyless entry.
